Gardasoft to CCS connection diagram, 12V models

Connecting Gardasoft Controllers to CCS Standard 12V models (with SM connectors)

Gardasoft Controllers are universally connectable to all of the CCS range of LED Machine Vision lighting. Below you will find the connection for CCS 12V Standard models with SM connectors.

More information about CCS lighting

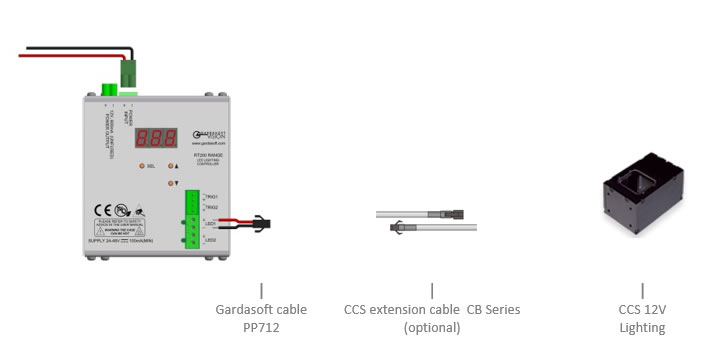

Connection Diagram

Connection Diagram
