Controller cables and accessories are an important part of a controller installation, but they tend to get less attention than the controllers themselves. These fall into two categories: DIN rail kits and cable adapters.

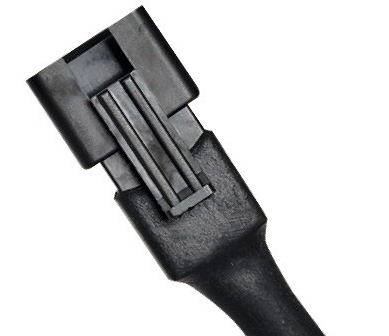

Gardasoft Lighting Accessories and Cables

DIN rail kits

The RCxxx controllers have a built in DIN rail clip. TR-HTxxx controllers do not have a DIN rail kit because these are high-power controllers that need to be panel-mounted. They are also too heavy to mount to a DIN rail successfully. The rail kits available for the other controllers are as follows:

  • PP701: DIN rail kit for the PP4xx, PP5xx and PP6xx ranges of controllers.
  • PP703: DIN rail kit for the CC320 trigger timing controller.
  • PP705: DIN rail kit for the PP8xx and PP16xx ranges of controllers.
  • PP706: DIN rail kit for the RTxxx and RTCCxxx ranges controllers.

Cable adapters

A variety of cable adapters are available:

  • PP712: Cable adapter from tinned leads to 2-pin JST connector. This can be used to adapt from lighting output screw terminals to Japanese 12V lights.
  • PP713: Cable adapter from tinned leads to 3-pin JST connector. This can be used to adapt from lighting output screw terminals to Japanese 24V lights.
  • PP714: Cable adapter from tinned leads to 3-pin JST connector. This can be used to adapt from lighting output screw terminals to Japanese high brightness 3V lights.
  • PP715: Cable adapter from 5-pin M12 male connector to tinned leads. This can be used to connect from some camera trigger outputs to lighting controller trigger inputs.
  • PP716: Cable adapter from 5-pin M12 female connector to tinned leads. This can be used to connect from the lighting output screw terminals to lights fitted with an M12 connector.

More information is available from the Gardasoft Cables and Accessories page, where installation notes can also be downloaded.
